Motorized cornice for winter gardens Garden 551/1
Window
Delimiter
Office
Conference hall
Sunscreen
For home
Hotel
Mounting pictures
Bathrooms
Ships
Bus, van
90 degree angle
Large bending angle
Arch
| Артикул: | 00000 |
| Accommodation | Внутренние
|
| Bend | 90 degree bend
Smooth radius bend |
| BY APPEARANCE | Technical
|
| BY TYPE of POWER SUPPLY | 220V
|
| Country of origin | Italy
|
| Product type | Cornice systems for skylights
|
| Profile height, (cm) | 5,04
|
| Profile width, (cm) | 3,33
|
| Brand | Mottura
|
| Mount type | Ceiling
Wall Inclined installation |
| Control type | Button
Remote controller Smart House |
| Type of curtain rod | Single
|
| Max fabric weight, kg | 35
|
heavy-duty automatic attic cornice system
The MOTTURA company produces a full range of curtain rod and sun protection systems, and of course offers a wide range of solutions for decoration and professional sun protection of roof windows.
Garden curtain rod systems are a specialized solution for shading and sun protection of roof windows, winter gardens and any inclined glazing. The company's product range includes several Garden curtain rod system models, each with its own features and unique technical characteristics.

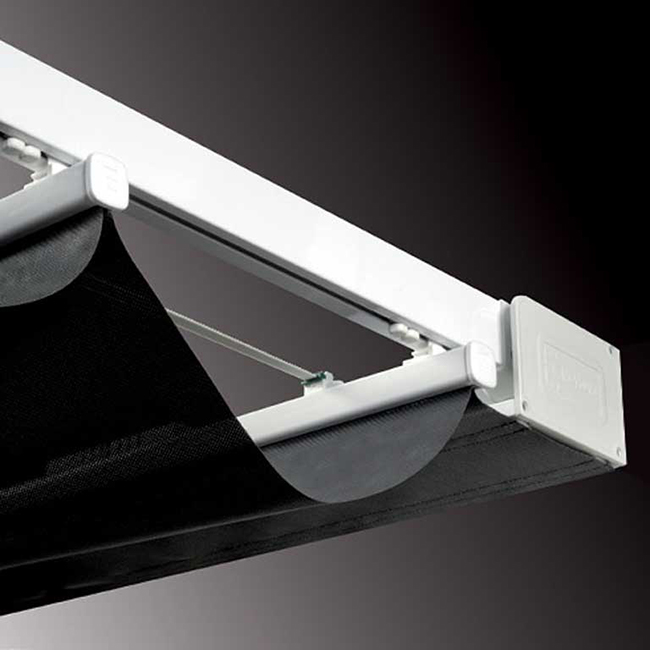

Attic curtain rod system Garden 551/1 is a heavy-duty motorized system for curtaining winter gardens and attic glazing, which allows you to screen openings with Lmax =300 cm and Hmax=1000 cm, activated by a button, original remote controls, and can also be connected to the M2NET automation system from MOTTURA and other smart home systems.
Garden 551/1 is one of the most powerful curtain rod systems for roof glazing on the world market. Depending on the technical specifications, fabrics from the Hi-Tex collection, as well as specialized sun-protection fabrics from the Master collection, can be used with the Garden 551/1 curtain rod system. It is important to consider that when curtaining horizontal glazing, the maximum weight of the canvas is up to 35 kg.
Despite the impressive profile size of the curtain rod system, Garden 551/1 can be bent along a smooth radius, which allows you to decorate complex areas of glazing.
For ease of installation and a wide range of applications for the Garden cornice system, Mottura has developed several special brackets that allow the installation of cornice systems on various surfaces, including parallel installation of cornice systems, decorating continuous attic glazing without gaps. Also, the curtain system Garden 551/1 can be installed in pairs using a single motor on several systems, significantly saving the budget for curtaining the glass roof.
You can buy cornice systems for attic glazing in Kyiv in the VOGUE INTERIORS salon, where the entire range of the MOTTURA company is presented (Italy). You can order curtain rod systems online in our online store with delivery throughout Ukraine.
- aluminum profile
- aluminum box
- profile with Velcro tape
- pair of end caps
- brackets
- drive shaft
- motor 90-250Vac
- toothed belt
- profile plugs
- runners for art. 414
- carriages
ATTENTION: fabric for the curtain system is not included in the standard set of the curtain rod. Individual configuration is possible and assembled upon request.
- profile made of extruded aluminum alloy 6060 T6 UNI 8278
- system profile width: 33.3 mm, profile height: 50.4 mm
- profile groove: 6 mm
- 24Vdc motor with a switching power supply 90-250Vac AC/24Vdc DC, 110W/13Nm/67 rpm
- minimum bending radius: 50 cm
- profile surface finish:
polyester coating in white color RAL 9016 - curtain system components made of self-lubricating acetal plastic
