Powerful electric curtain rail Power 801
Window
Delimiter
Office
Conference hall
Sunscreen
For home
Hotel
Mounting pictures
Bathrooms
Ships
Bus, van
90 degree angle
Large bending angle
Arch
| Артикул: | 00000 |
| Accommodation | Внутренние
|
| Bend | Smooth radius bend
|
| BY APPEARANCE | Technical
|
| BY TYPE of POWER SUPPLY | 220V
|
| Country of origin | Italy
|
| Product type | Curtain rods for draped curtains
|
| Profile height, (cm) | 3,9
|
| Profile width, (cm) | 6,7
|
| Brand | Mottura
|
| Mount type | Ceiling
Wall Inclined installation |
| Control type | Button
Remote controller Smart House |
| Type of curtain rod | Single
|
| Max fabric weight, kg | 250
|
Heavy-duty electric curtain rod for stages in concert halls and theatres
Motorized curtain rod system Power 801 from MOTTURA (Italy) is the most powerful electric curtain rod for draped curtains, created by Mottura (Italy) for curtaining large spaces, such as the stage of a theatre, concert hall or moving heavy draped curtains weighing up to 250 kg and for a length of up to 30 meters.
Powerful electric curtain rod Power 801 is not just an automatic curtain rod - it is a thoughtful engineering solution that can easily cope with such tasks, how to: curtain a theatre stage, control mobile scenery in a concert hall, and also divide space (for example, in restaurants or conference rooms).
Electric curtain rod Power 801 is the top system in the range of motorized curtain rods for draped curtains. Installation of this curtain rod (like all Mottura electric curtain rods) can be carried out without recourse to the services of specialized personnel.
The motorized curtain rod Power 801 is designed for curtains up to 30 meters long and weighing up to 250 kg; it can have central, side and asymmetric openings. A 220V network powers this electric curtain rod system and has electronic control of the curtain rod with the ability to select the movement speed of the curtain fabric from 12 to 24 m/min.

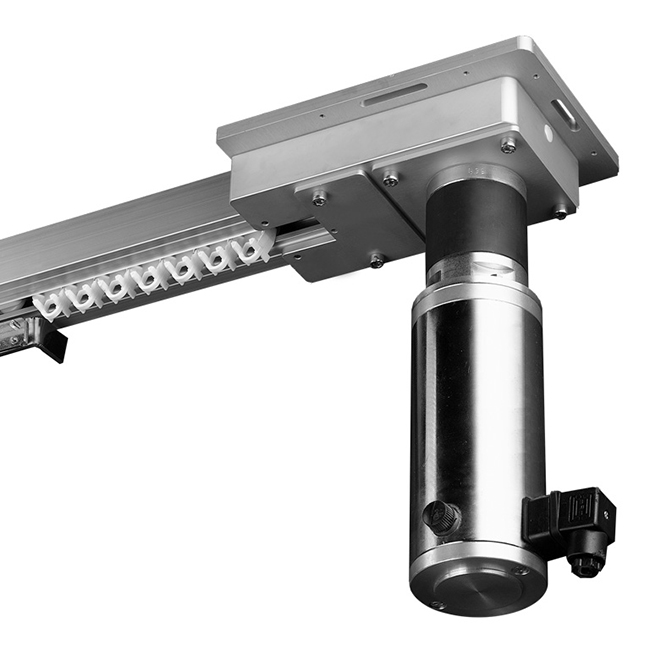

The curtain rod mechanism with the Power 801 drive is driven by a toothed polyurethane belt reinforced with steel thread, which prevents the belt from loosening even under maximum load and long service life.
Using the information LEDs on the eaves system panel you can always determine the condition of the eaves.
The Power 801 cornice can bend along a smooth radius (minimum radius 150 cm) and have several control methods: wired button, radio remote control, Smart Home system
You can buy a powerful electric curtain rod, Power 801, in Kyiv in the VOGUE INTERIORS showroom and order motorized curtain rods with delivery throughout Ukraine in our online store.
- white curtain rod profile made of aluminum, art. 801/A
- a pair of end caps, art. 1403
- motor, art. 1410
- electrical control module, art. 1415
- mechanical limit switches, art. 1408
- roller runners, art. 1412
- carriage, art. 1406B (or art. 1411B for central opening)
- ceiling mount, brackets every 80 cm, art. 5280
- cable (up to 7 m) for connecting the curtain rod system
- curtain rod packaging
Attention: hooks for hanging curtains are not included in the curtain rod set and are supplied on request. Individual configuration is possible and provided on request.
- curtain rod profile made of extruded aluminum alloy 6060 T6 UNI 8278
- curtain rod profile width: 67 mm, curtain rod profile height: 39 mm
- curtain rod profile groove: 16 mm
- motor 170 Vdc / 1.5 A; power supply: 230 Vac – 50 Hz
- nominal torque 24 Nm
- curtain movement speed: 12 m/min, 18 m/min, 24 m/min
- electromechanical end limit switch
- minimum bending radius of the curtain rod by smooth radius: 150 cm
- curtain rod surface finish: anodized silver
- blocks made of aluminum alloy with pulleys on ball bearings
