Motorized curtain rod Power 571/1
Window
Delimiter
Office
Conference hall
Sunscreen
For home
Hotel
Mounting pictures
Bathrooms
Ships
Bus, van
90 degree angle
Large bending angle
Arch
| Артикул: | 00000 |
| Accommodation | Внутренние
|
| Bend | Smooth radius bend
Two 90 degree bends |
| BY APPEARANCE | Technical
|
| BY TYPE of POWER SUPPLY | 220V
|
| Country of origin | Italy
|
| Product type | Curtain rods for draped curtains
|
| Profile height, (cm) | 2,97
|
| Profile width, (cm) | 3,2
|
| Brand | Mottura
|
| Mount type | Ceiling
Wall Inclined installation |
| Control type | Button
Remote controller Smart House |
| Type of curtain rod | Single
|

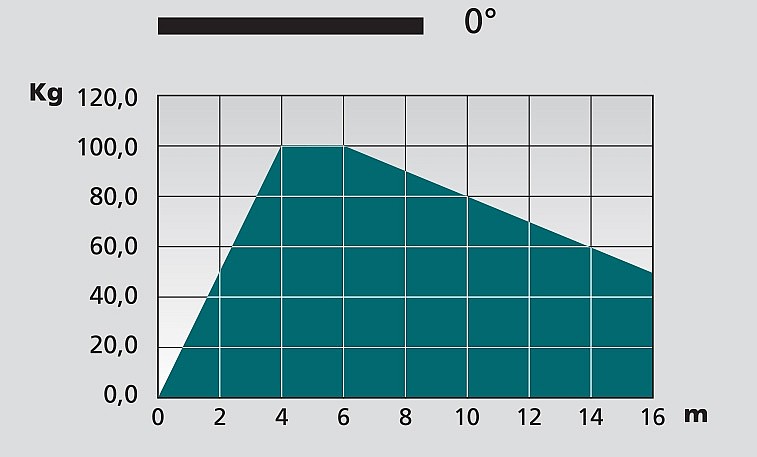

| Max fabric weight, kg | 100
|

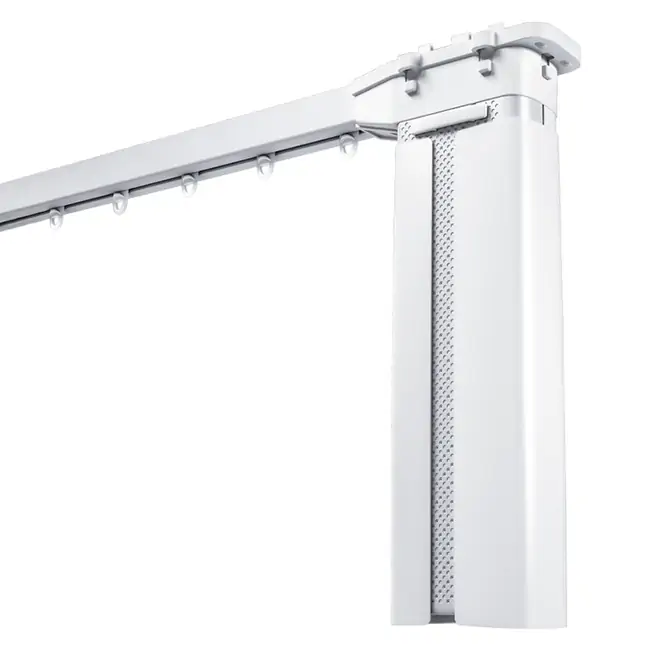

Motorized curtain rod for medium-heavy draped curtains with digital motor and built-in radio receiver
Electric curtain rod Power 571/1 is a powerful and modern motorized curtain rod for draped curtains, presented by MOTTURA (Italy), which is suitable for fairly heavy curtains and covering large windows.
The peculiarity of the motorized curtain rod Power 571/1 is its low power consumption. Compared to other 230Vac motors, the Power 571/1 electric curtain rod motor guarantees energy savings of up to 70%.
Electric curtain rods Power 571/1 - These are automatic curtain rods suitable for curtaining larger spaces, as well as rooms where a curtain rod with a smooth radius and 90-degree bends is needed.
The motorized curtain rod Power 571/1 is equipped as standard with a built-in radio receiver for using control - a radio remote control. Also, the electric curtain rod Power 571/1 can connect the curtain rods to the Smart Home system or control it with a button.
The executive unit of the motorized curtain rod Power 571/1 consists of a 24V DC motor with a built-in power supply with wide-range switching of alternating current 90-250Vac/direct 24Vdc and control electronics that controls the functioning of the curtain rod system.
Using the external button panel on the curtain rod motor, you can easily adjust the position of the limit switch and set the parameters of the built-in radio receiver.
The curtain fabric assembly speed at the Power 571/1 cornice is 25 cm/s. The Power 571/1 electric curtain rod is usually assembled using a single-channel profile but can also be assembled using a double-channel profile for large overlap curtains. To ensure a large overlap, it is also recommended that 2 Power 571/1 systems be installed in parallel and controlled from a wired remote control art. 5361 (or 5096).
The curtain's opening can be central, lateral or asymmetrical. The electric curtain rod Power 401/1 can be either ceiling or wall-mounted. The cornice can bend at an angle of 90 degrees and along a smooth radius.
You can buy electric curtain rods in Kyiv in the VOGUE INTERIORS showroom, and you can also order automatic curtain rods on our Internet -store.
- white curtain rod profile made of aluminum
- a pair of end caps
- runners every 8-10 cm, art. 5017 or art. 5028 (for lengths over 700 cm)
- carriage, art. 5540
- ceiling mount, brackets every 80 cm, art. 5280
- digital motor, art. 5532/1
- polyethylene packaging
Attention: hooks for hanging curtains are not included in the curtain rod set and are supplied on request. Individual configuration is possible and provided on request.
- profile of the curtain rod made of extruded aluminum alloy 6060 T6 UNI 8278
- curtain rod profile width: 32 mm, curtain rod profile height: 29.7 mm
- curtain rod profile groove: 6 mm
- curtain movement speed: 25 m/s
- 24 Vdc DC motor with power supply and wide-range switch for AC 90-250 Vac / DC 24V – 55 W – 4 Nm – 100 rpm
- minimum bending radius of the curtain rod:
90° bend: 30 cm, smooth radius bend: 50 cm - force transmission using a toothed belt made of polyurethane with a steel cord and a polyamide coating to reduce friction and wear
- curtain rod surface finish:
polyester coating in white color RAL 9016 - curtain rod runners made of impact-resistant thermoplastic with wheels on steel axles
- auto-lock motor insert and belt tension mechanism located in the bypass block
- curtain rod parts made of self-lubricating acetal plastic
